UniToken Console Tool

UniToken Console is used to manage devices, set user permission as well as control file system and certificates.

Device Management

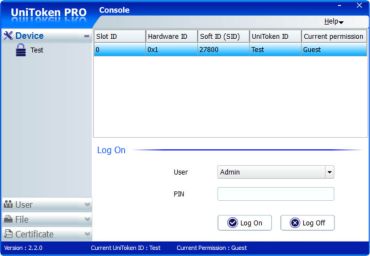

Logon

Select the UniToken icon in the device list.
Input the corresponding PIN in “PIN”.

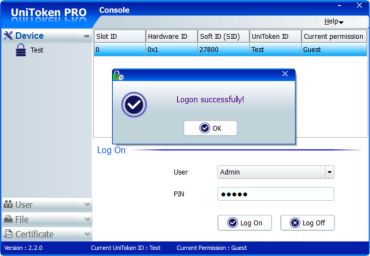

Click “Logon”.

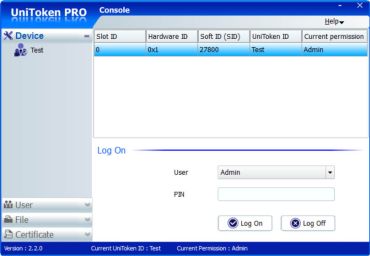

After logon, the current permission will change from “Guest” to “Admin”.

Logoff

Select the UniToken in the device list.
Click “Logoff”.

Once logged off, the permission will be changed back to “Guest”.

The default user permission is Guest when UniToken is attached to the computer and recognized, then the icon will appear besides the name of the device in the device list.

To obtain higher-level permission, a user needs to logon the UniToken with his corresponding username and PIN. When you logon as a user, the icon will appear besides the icon in the device list; if you logon as an administrator, will appear.

If a PIN is wrongly input over 15 times successively (the default attempt times is 15), UniToken will lock itself even though the right PIN is input, and the user cannot logon again. Then, you have to log on as administrator to unlock it. The administrator can also reset the maximal attempt times.

User Management

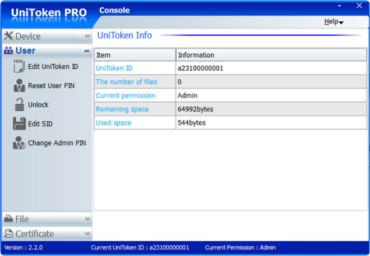

When click the User tab, UniToken detailed information will show on the right as below. It is allowed to edit token ID, change/reset User PIN, unlock token and edit software ID.

Edit UniToken ID

UniToken ID is the name that can be defined by customers, which is comprehensible for humans. That helps customers to locate and remember the token sooner.
