Revision as of 19:12, 10 April 2012
UniToken GINA Package Installation
This part explains how to install the Standalone authentication package for Windows XP/2k that you can find inside the SDK.
| 1 | Go to the folder: Integration Guides/Smart Card
Logon Feature/Standalone SmartCard
logon(GINA). |
 |
| 2 | Click on [Next] in the welcome screen. |
 |
| 3 | On the Installation welcome page, click on
[Next]. |
 |
| 4 | Click on [Install] to begin the installation. |
 |
| 5 | Choose “Yes, I want to restart my computer now”
and click [Finish]. |
 |
Bind UniToken PRO to Windows Account

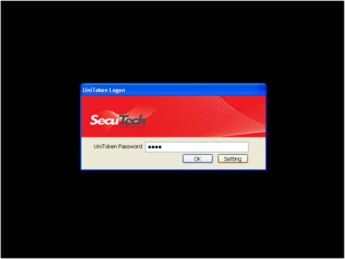

| 1 | Insert your UniToken PRO in your computer, input
the PIN code for the Token and click on [Settings]. |
 |
| 2 | In [Add WinLogon User into Token] part, input username, domain (leave blank if the computer is not member of a domain) and password. Then, click on [Add] to add this user information inside the Token. Note: You can also delete a user from the Token and change your Token PIN using this tool. |
 |
Windows Logon

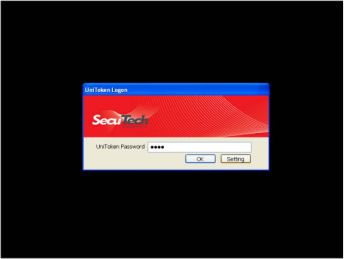

| 1 | When you start your computer, insert your UniToken, input your PIN and click on OK. |
 |
| 2 | Choose the user account that you want to use to access this computer (You can store many windows accounts settings in your UniToken). Click on [OK]. You don’t need to input your Windows account password again. You only need to input the password for your Token and have the UniToken plugged into your computer to log on. |
 |
Access to the encrypted disk
| 1 | When you insert the encrypted disk in your computer, the following dialog box will appear (you can also choose to unlock automatically the disk when it is inserted). Insert your UniToken and click on [Unlock]
|
 |
| 2 | You will be asked to type the User PIN for your UniToken to unlock the drive. The drive will be unlocked only if the correct password is entered. |
 |
Glossary
SmartCard: is any pocket-sized card with embedded integrated circuits. There are two broad categories of ICCs. Memory cards contain only non-volatile memory storage components, and perhaps dedicated security logic. Microprocessor cards contain volatile memory and microprocessor components.
Public Key Infrastructure (PKI) is a set of hardware, software, people, policies, and procedures needed to create, manage, distribute, use, store, and revoke digital certificates.
Microsoft Cryptography API, MS-CAPI is an application programming interface included with Microsoft Windows operating systems that provides services to enable developers to secure Windows-based applications using cryptography.
PKCS refers to a group of public-key cryptography standards devised and published by RSA Security.
